ROTOR Evaq System
high load rating,
unique integral load indicator,
low profile body design,
no external moving parts,
lowering and lifting capability,
manual or automatic operation,
completely intuitive.
The ROTOR evaq system includes a descender device with raising function via a detachable ratchet handle, rope, karabiners, anchor strop and bag.
The system enables vertical rescues and evacuation from height and has been developed to meet the exacting requirements of onshore and offshore wind, oil & gas, energy and construction sectors.
At the core of the evacuation system is the ROTOR rescue and evacuation descender, an intuitive device which allows self-evacuation automatically limited maximum descent speed or controlled lowering or raising of a casualty. The ROTOR can control rope speed in either direction, meaning that repeated descents can be carried out in quick succession.
The ROTOR can also lift in either direction using the ratchet handle supplied. This enables multiple evacuees to use alternate rope ends. With the locking mechanism engaged the load is held if the handle is released.
The ROTOR can change from lift to lower (and vice versa) at any point whilst under load.
120 cm webbing anchor strop with protective sleeve.
Self locking alloy karabiners.

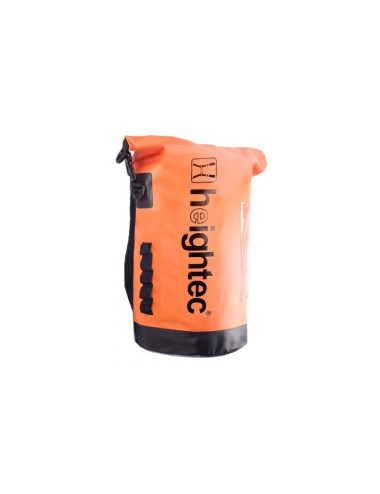

All rescue systems come complete with our versatile KARI 30 transport bag. heightec’s KARI bag range is tough, waterproof and suitable for storage and hauling. Designed specifically for work at height and rescue, the KARI transport bag range brings all the features of traditional dry bags but with increased protection. Different styles available for different functions – personal kits, rescue systems, rope, tool bags etc.
Data sheet
- Length (m):
- 25.00, 50.00, 100.00
- Material:
- Aluminium, Galvanised Steel, Polyamide, Stainless Steel, polyester
- Loading (WLL):
- 140 kg (lift), 250 kg (descent)
- EN Mass Test:
- 140 kg, 250 kg
- Weight (kg):
- 6.68
Products Codes
- Manufacturer Product Number:
- WK42025
